AC602020

50MHz to 6GHz Gain Block MMIC Amplifier

AC602020 Features

* Operating Frequency 50MHz to 6GHz 18dB Gain at 2.0GHz 22dBm P1dB at 2.0GHz 32dBm OIP3 at 2.0GHz Single Power Supply Integrated Active Bias Circuit Industry Standard SOT-89 Package ESD protection all ports above 1000V HBM GND IN GND OUT Functional Block Diagram Applications WLAN / WiMAX / WiBro

AC602020 General Description

The AC602020 is a high performance InGaP/GaAs HBT MMIC gain block amplifier utilizing a Darlington pair configuration with an active bias network. The active bias network provides stable current over temperature and process variations. The AC602020 is internally matched to 50 , its typical bias cond.

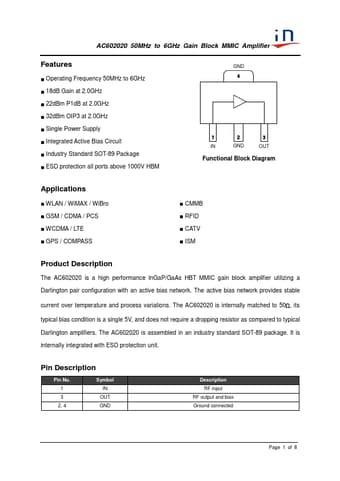

AC602020 Datasheet (133.94 KB)

Preview of AC602020 PDF

Datasheet Details

Part number:

AC602020

Manufacturer:

Innogration

File Size:

133.94 KB

Description:

50mhz to 6ghz gain block mmic amplifier.
