SF-0603HI100M-2 High Inrush Current Withstand Surface Mount Fuses

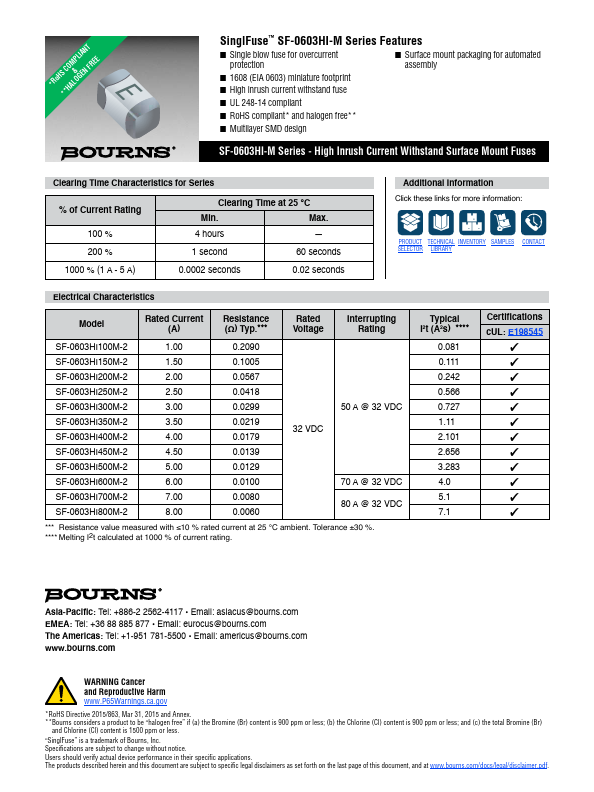

📥 Download Datasheet  Datasheet Preview Page 1

Description

*RoHS * *CHOAML&POLGIAENNTFREE E SinglFuse™ SF-0603HI-M Series .

📥 Download Datasheet

Preview of SF-0603HI100M-2 PDF

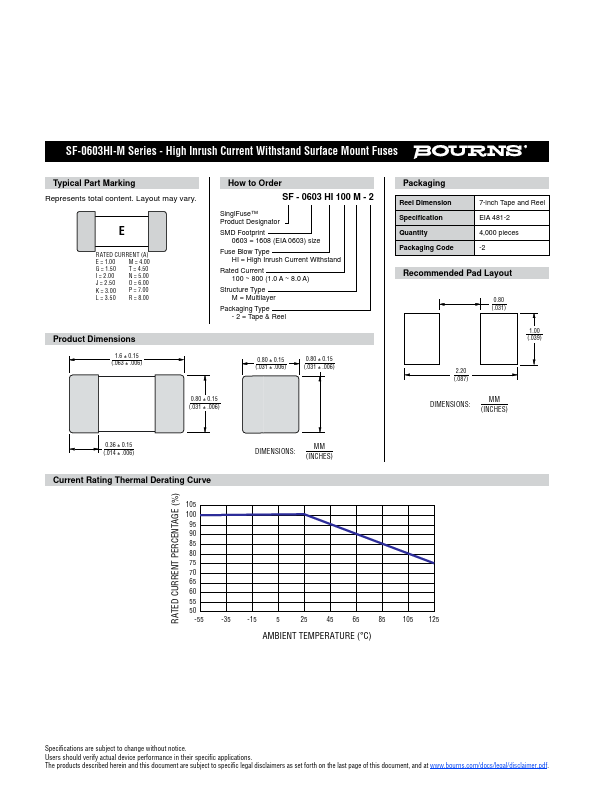

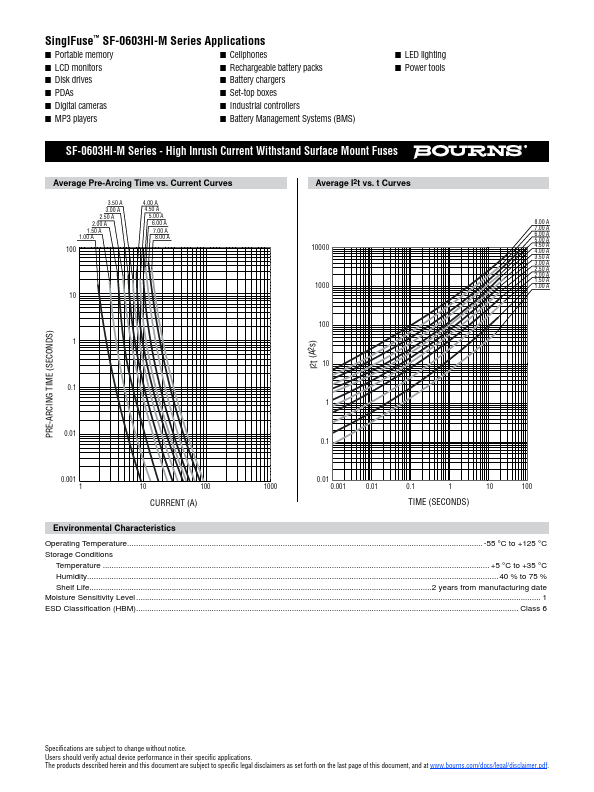

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SF-0603HI100M-2
Manufacturer
BOURNS
File Size
250.14 KB
Datasheet
SF-0603HI100M-2-BOURNS.pdf
Description
High Inrush Current Withstand Surface Mount Fuses

Features

* Single blow fuse for overcurrent protection
* Surface mount packaging for automated assembly
* 1608 (EIA 0603) miniature footprint
* High inrush current withstand fuse
* UL 248-14 compliant
* RoHS compliant
* and halogen free
* Multilayer SMD design

Applications

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. SinglFuse™ SF-0603HI-M Series Applications
* Portable memory
* Cellphones
* LCD monitors
* R
