SF-0603HI300M-2, SF-0603HI100M-2 Datasheet - BOURNS

SF-0603HI300M-2 High Inrush Current Withstand Surface Mount Fuses

SF-0603HI300M-2 Features

* Single blow fuse for overcurrent protection

* Surface mount packaging for automated assembly

* 1608 (EIA 0603) miniature footprint

* High inrush current withstand fuse

* UL 248-14 compliant

* RoHS compliant

* and halogen free

* Multilayer SMD design

SF-0603HI100M-2-BOURNS.pdf

This datasheet PDF includes multiple part numbers: SF-0603HI300M-2, SF-0603HI100M-2. Please refer to the document for exact specifications by model.

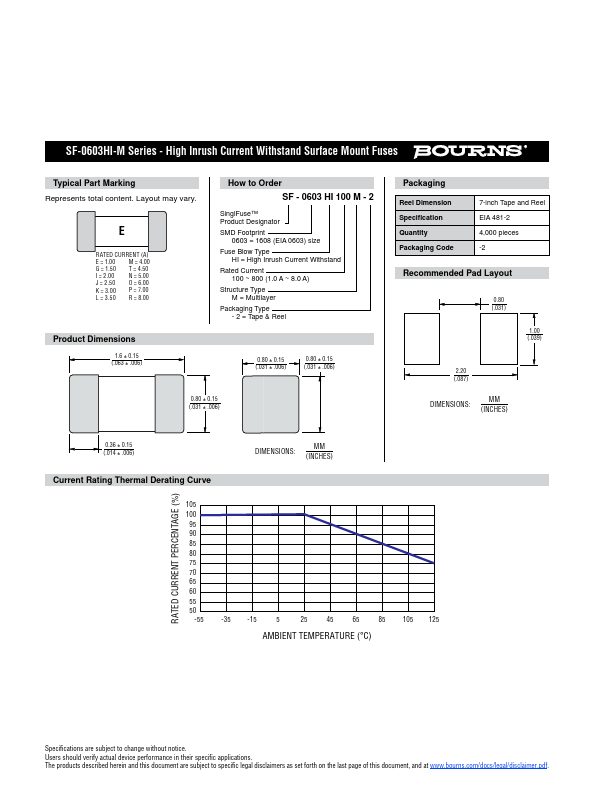

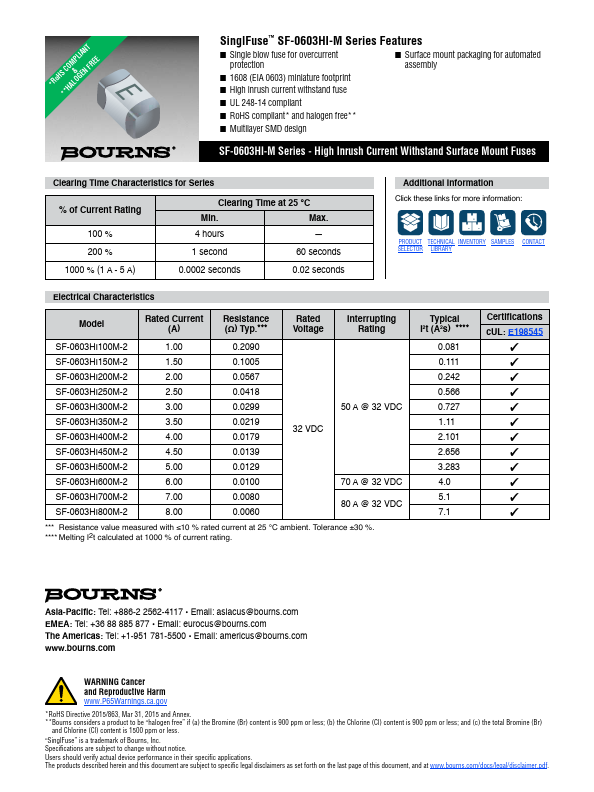

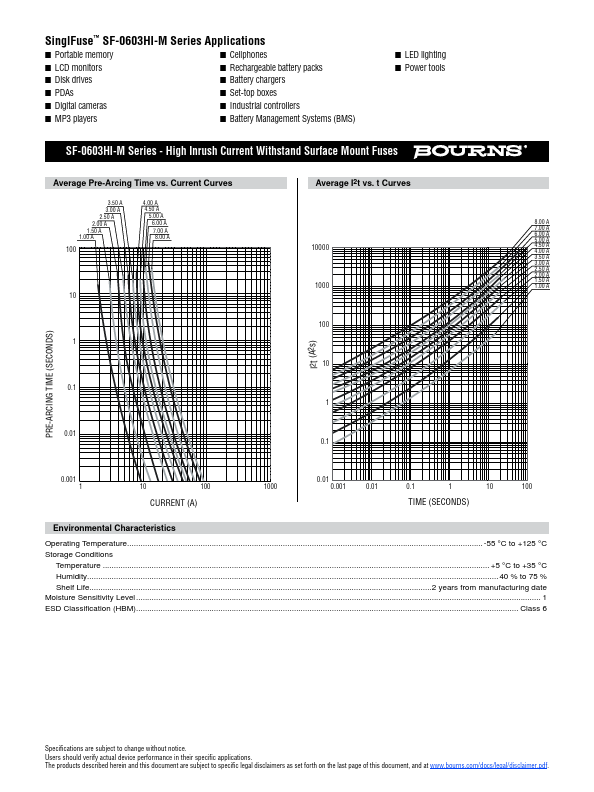

SF-0603HI300M-2 Datasheet Preview Page 2 SF-0603HI300M-2 Datasheet Preview Page 3

Datasheet Details

Part number:

SF-0603HI300M-2, SF-0603HI100M-2

Manufacturer:

BOURNS

File Size:

250.14 KB

Description:

High inrush current withstand surface mount fuses.

Note:

This datasheet PDF includes multiple part numbers: SF-0603HI300M-2, SF-0603HI100M-2.
Please refer to the document for exact specifications by model.
