SF-1206F300-2 - Fast Acting Surface Mount Fuses

Product Overview

BOURNS

Part number	SF-1206F300-2
Manufacturer	BOURNS
File Size	232.65 KB
Description	Fast Acting Surface Mount Fuses
Datasheet	SF-1206F300-2 Datasheet
Note	This datasheet PDF includes multiple part numbers: SF-1206F300-2, SF-1206F050-2. Please refer to the document for exact specifications by model.

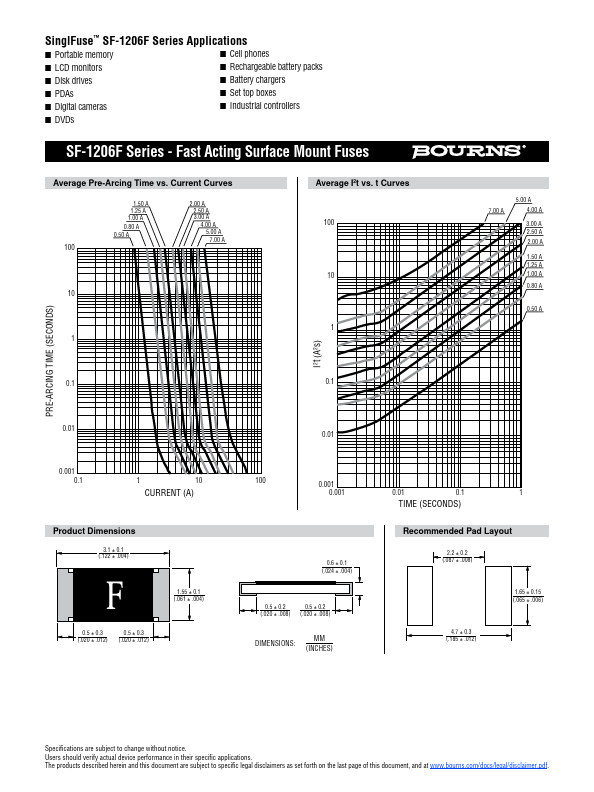

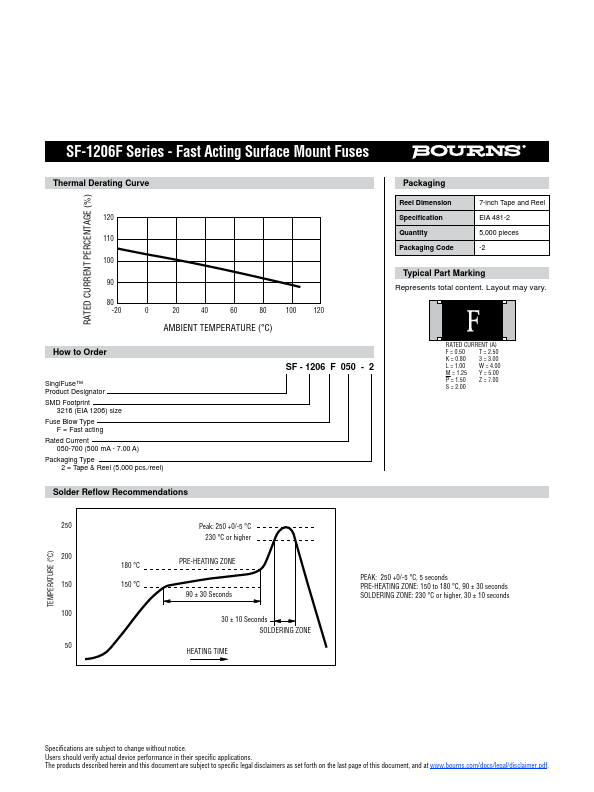

Additional preview pages of the SF-1206F300-2 datasheet.

Fast acting thin film chip fuse for overcurrent protection.
3216 (EIA 1206) miniature footprint.
Surface mount packaging for automated assembly.
UL 248-14 compliant.
RoHS compliant.
and halogen free.
SF-1206F Series - Fast Acting Surface Mount Fuses Clearing Time Characteristics for Series % of Current Rating 100 % 200 % Clearing Time at 25 °C Min. Max. 4 hours.
60 seconds Additional Information Click these links for more inform.
