SF-1206S500W-2, SF-1206S150W-2 Slow Blow Wire Core Surface Mount Fuses

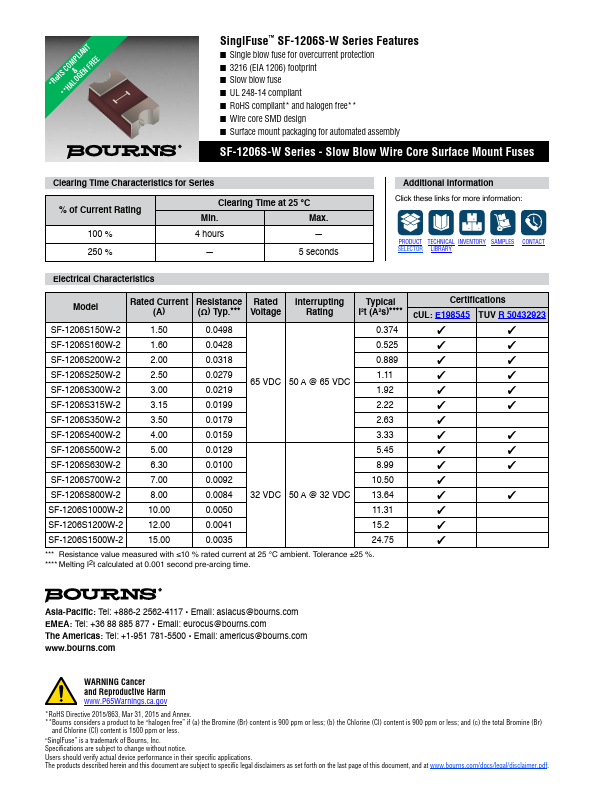

📥 Download Datasheet  Datasheet Preview Page 1

Description

*RoHS * *CHOAML&POLGIAENNTFREE I SinglFuse™ SF-1206S-W Series .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SF-1206S500W-2, SF-1206S150W-2. Please refer to the document for exact specifications by model.

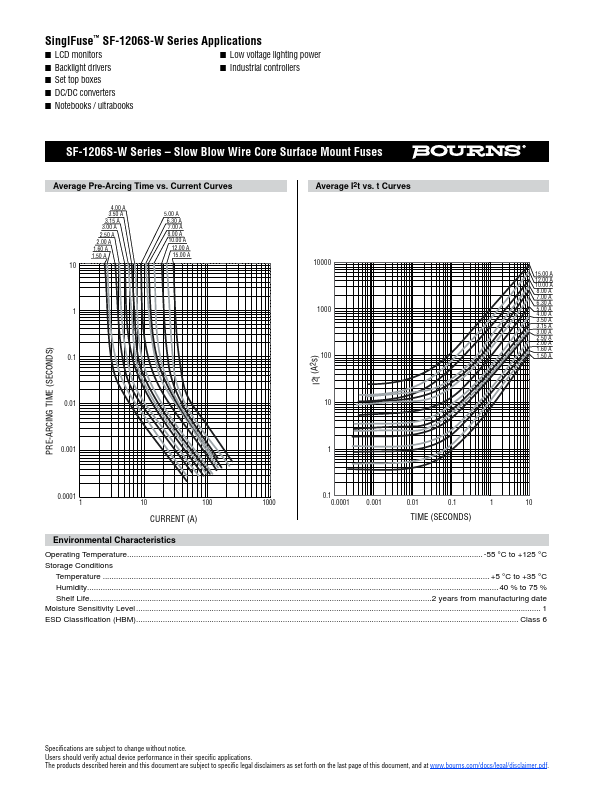

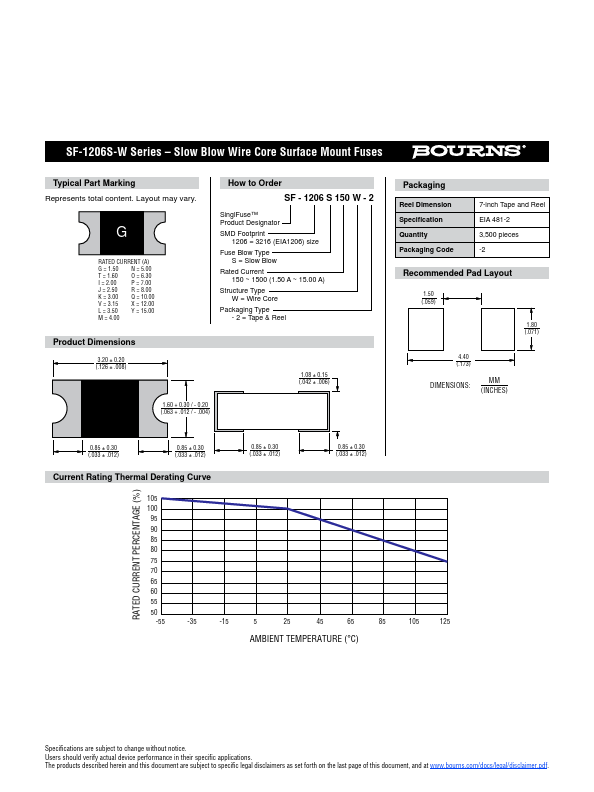

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SF-1206S500W-2, SF-1206S150W-2
Manufacturer
BOURNS
File Size
256.33 KB
Datasheet
SF-1206S150W-2-BOURNS.pdf
Description
Slow Blow Wire Core Surface Mount Fuses
Note
This datasheet PDF includes multiple part numbers: SF-1206S500W-2, SF-1206S150W-2.
Please refer to the document for exact specifications by model.

Features

* Single blow fuse for overcurrent protection
* 3216 (EIA 1206) footprint
* Slow blow fuse
* UL 248-14 compliant
* RoHS compliant
* and halogen free
* Wire core SMD design
* Surface mount packaging for automated assembly SF-1206S-W Series - Slow Blow Wire Cor

Applications

* The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. SinglFuse™ SF-1206S-W Series Applications
* LCD monitors
* Low voltage lighting power
* Backlight
