SF-1206S800W-2, SF-1206S150W-2 Datasheet - BOURNS

SF-1206S800W-2, SF-1206S150W-2, Slow Blow Wire Core Surface Mount Fuses

*RoHS * *CHOAML&POLGIAENNTFREE I SinglFuse™ SF-1206S-W Series .

Features

* Single blow fuse for overcurrent protection
* 3216 (EIA 1206) footprint
* Slow blow fuse
* UL 248-14 compliant
* RoHS compliant
* and halogen free
* Wire core SMD design
* Surface mount packaging for automated assembly SF-1206S-W Series - Slow Blow Wire Cor

Applications

* The products described herein and this document are subject to speciﬁc legal disclaimers as set forth on the last page of this document, and at www. bourns. com/docs/legal/disclaimer. pdf. SinglFuse™ SF-1206S-W Series Applications
* LCD monitors
* Low voltage lighting power
* Backlight

SF-1206S150W-2-BOURNS.pdf

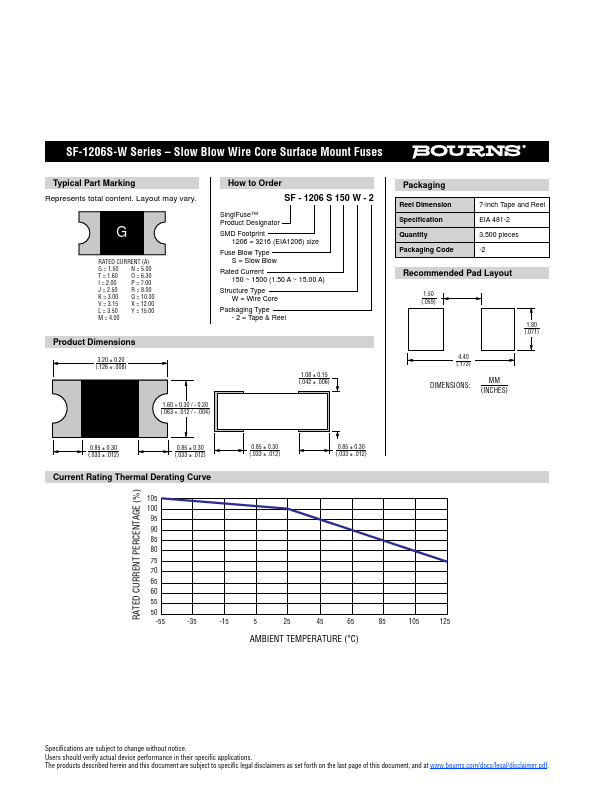

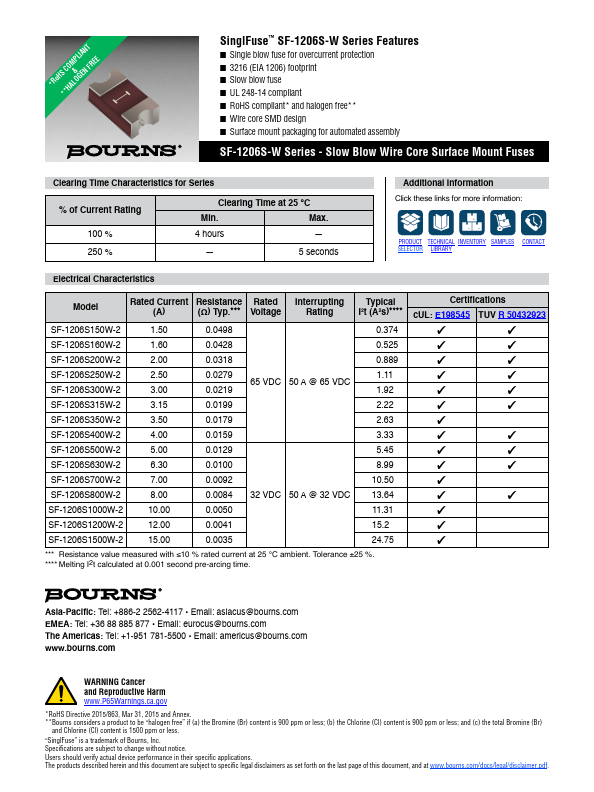

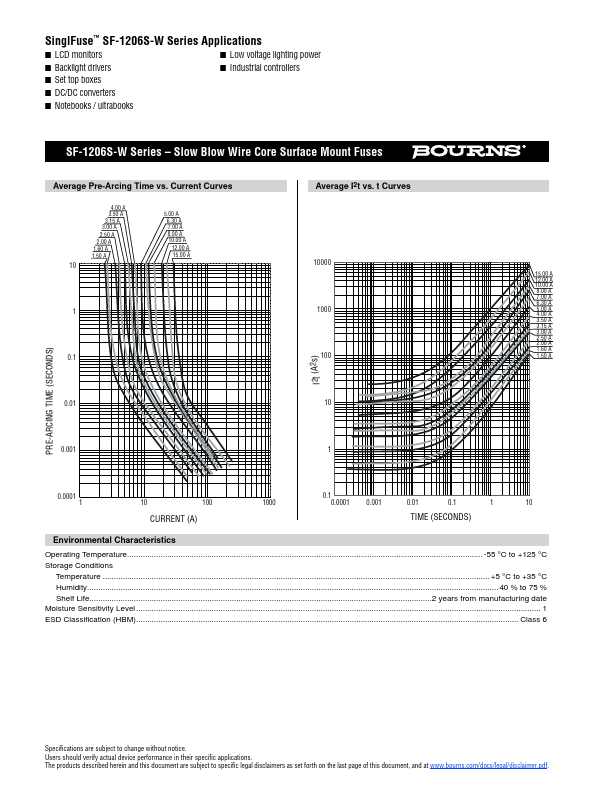

SF-1206S800W-2 Datasheet Preview — This datasheet PDF includes multiple part numbers: SF-1206S800W-2, SF-1206S150W-2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SF-1206S800W-2, SF-1206S150W-2

Manufacturer:

BOURNS

File Size:

256.33 KB

Description:

Slow Blow Wire Core Surface Mount Fuses

Note:

This datasheet PDF includes multiple part numbers: SF-1206S800W-2, SF-1206S150W-2.
Please refer to the document for exact specifications by model.
