Datasheet Details
Part number:
TIC225N, TIC225
Manufacturer:
BOURNS
File Size:
193.28 KB
Description:
Silicon triacs.
Note:
This datasheet PDF includes multiple part numbers: TIC225N, TIC225.
Please refer to the document for exact specifications by model.

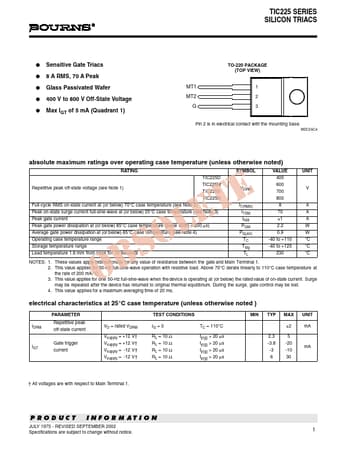

TIC225N, TIC225, SILICON TRIACS
TIC225 SERIES SILICON TRIACS Sensitive Gate Triacs 8 A RMS, 70 A Peak Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 5 mA (Quadrant 1) MT1 MT2 G TO-220 PACKAGE (TOP VIEW) 1 2 3 Pin 2 is in electrical contact with the mounting base.
MDC2ACA absolute maximum ratings over operating case temperature (unless otherwise noted) RATING SYMBOL VALUE UNIT OBSOLETE TIC225D Repetitive peak off-state voltage (see Note 1) TIC225M TIC225S TIC225N F
