TIC226N, TIC226 Datasheet - BOURNS

TIC226N SILICON TRIACS

TIC226 SERIES SILICON TRIACS 8 A RMS Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 50 mA (Quadrants 1 - 3) This series is currently available, but not recommended for new designs. MT1 MT2 G TO-220 PACKAGE (TOP VIEW) 1 2 3 Pin 2 is in electrical contact with the mounting base. MDC2ACA absolute maximum ratings over operating case temperature (unless otherwise noted) RATING TIC226D Repetitive peak off-state voltage (see Note 1) TIC226M TIC226S TIC226N Full-cycle RMS .

TIC226-BOURNS.pdf

This datasheet PDF includes multiple part numbers: TIC226N, TIC226. Please refer to the document for exact specifications by model.

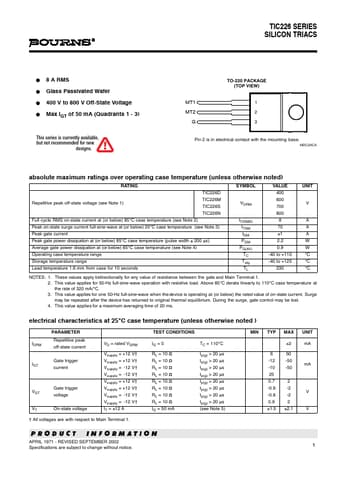

TIC226N Datasheet Preview Page 2 TIC226N Datasheet Preview Page 3

Datasheet Details

Part number:

TIC226N, TIC226

Manufacturer:

BOURNS

File Size:

169.47 KB

Description:

Silicon triacs.

Note:

This datasheet PDF includes multiple part numbers: TIC226N, TIC226.
Please refer to the document for exact specifications by model.
