SWB802, SW80 - 8-SPST Switches

Name: SWB802
SKU: SWB802-734984

BOWEI

The SWB802 by BOWEI is a 8-SPST Switches. Below is the official datasheet preview.

Datasheet Details

Part number	SWB802, SW80
Manufacturer	BOWEI
File Size	352.75 KB
Description	8-SPST Switches
Datasheet	SW80-x.pdf
Note	This datasheet PDF includes multiple part numbers: SWB802, SW80. Please refer to the document for exact specifications by model.

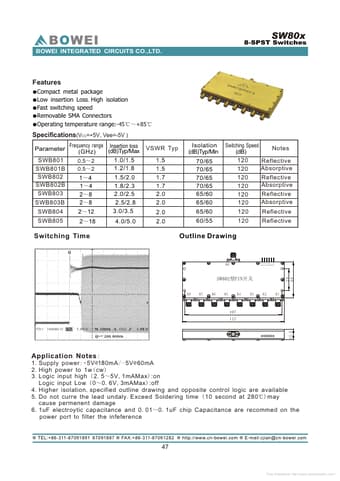

Additional preview pages of the SWB802 datasheet.

Compact metal package.
Low insertion Loss. High isolation.
Fast switching speed.
Removable SMA Connectors.
Operating temperature range:-45℃～+85℃ Specifications(VCC=+5V, Vee=-5V ) Parameter Frequency range (GHz) SWB801 0.5～2 SWB801B 0.5～2 SWB802 SWB802B 1～4 1～4 SWB803 SWB803B 2～8 2～8 SWB804 2～12 SWB805 2～18 Insertion loss (dB)Typ/Max 1.0/1.5 1.2/1.8 1.5/2.0 1.8/2.3 2.0/2.5 2.5/2.8 3.0/3.5 4.0/5.0 VSWR Typ 1.5 1.5 1.7 1.7 2.0 2.0 2.0 2.0 Isolation (dB)Typ/Min 70/.
