SWB803, SW80 - 8-SPST Switches

Name: SWB803
SKU: SWB803-734986

BOWEI

The SWB803 by BOWEI is a 8-SPST Switches. Below is the official datasheet preview.

Datasheet Details

Part number	SWB803, SW80
Manufacturer	BOWEI
File Size	352.75 KB
Description	8-SPST Switches
Datasheet	SW80-x.pdf
Note	This datasheet PDF includes multiple part numbers: SWB803, SW80. Please refer to the document for exact specifications by model.

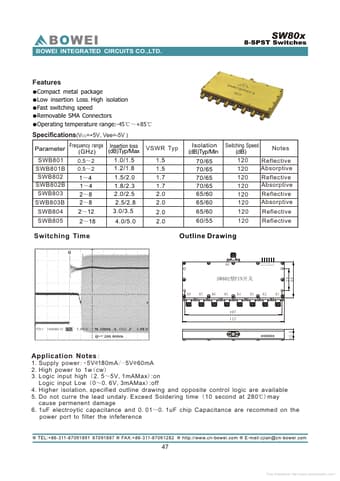

Additional preview pages of the SWB803 datasheet.

Compact metal package.
Low insertion Loss. High isolation.
Fast switching speed.
Removable SMA Connectors.
Operating temperature range:-45℃～+85℃ Specifications(VCC=+5V, Vee=-5V ) Parameter Frequency range (GHz) SWB801 0.5～2 SWB801B 0.5～2 SWB802 SWB802B 1～4 1～4 SWB803 SWB803B 2～8 2～8 SWB804 2～12 SWB805 2～18 Insertion loss (dB)Typ/Max 1.0/1.5 1.2/1.8 1.5/2.0 1.8/2.3 2.0/2.5 2.5/2.8 3.0/3.5 4.0/5.0 VSWR Typ 1.5 1.5 1.7 1.7 2.0 2.0 2.0 2.0 Isolation (dB)Typ/Min 70/.
