BP2831A - Non-isolated Buck Offline LED Driver

BP2831A Description

BP2831A Non-isolated Buck Offline LED Driver .
The BP2831A is a high precision buck constant current LED driver.

BP2831A Features

* Critical Conduction Mode Operation
* Internal 500V Power MOSFET
* No Auxiliary Winding
* Ultra Low Operating Current
* ±5% LED Output Current Accuracy
* LED Open Protection
* LED Short Protection
* Current Sensing Resistor Short Protection
* VCC Under Voltage Pr

BP2831A Applications

* LED Candle Light
* LED Bulb
* Other LED Lighting Typical Application AC BP2831A 4 VCC DRAIN 5 2 ROVP DRAIN 6 3 NC CS 7 1 GND CS 8 BP2831A_EN _DS_Rev.1.1 Figure 1. Typical application circuit for BP2831A www. bpsemi. com BPS Confidential
* Customer Use Only 1 Ordering

📥 Download Datasheet

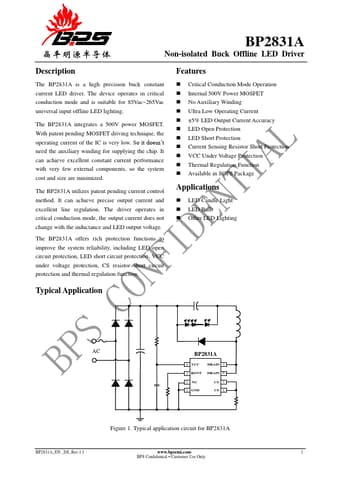

Preview of BP2831A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BP2831A
Manufacturer
BPS
File Size
505.50 KB
Datasheet
BP2831A-BPS.pdf
Description
Non-isolated Buck Offline LED Driver
