BP2831K - Non-isolated Buck Offline LED Driver

BP2831K Description

BP2831K Non-isolated Buck Offline LED Driver .
The BP2831K is a high precision buck constant current LED driver.

BP2831K Features

* Critical Conduction Mode Operation
* Internal 500V Power MOSFET
* No Auxiliary Winding
* Ultra Low Operating Current
* ±5% LED Output Current Accuracy
* LED Short Protection
* Current Sensing Resistor Short Protection
* VCC Under Voltage Protection
* Thermal Reg

BP2831K Applications

* LED Candle Light
* LED Bulb
* Other LED Lighting Typical Application AC BP2831K 4 VCC 2 TM 3 NC 1 GND DRAIN 5 DRAIN 6 CS 7 CS 8 Figure 1. Typical application circuit for BP2831K BP2831K_EN _DS_Rev.1.1 www. bpsemi. com 1 BPS Confidential
* Customer Use Only Ordering In

📥 Download Datasheet

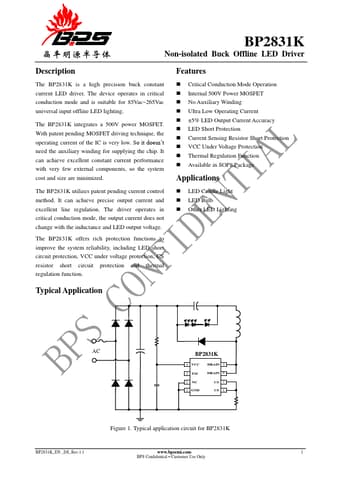

Preview of BP2831K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BP2831K
Manufacturer
BPS
File Size
418.68 KB
Datasheet
BP2831K-BPS.pdf
Description
Non-isolated Buck Offline LED Driver
