BP5131HC - High Voltage Linear LED Driver

BPS

The BP5131HC by BPS is a High Voltage Linear LED Driver. Below is the official datasheet preview.

📥 Download Datasheet

BP5131HC High Voltage Linear LED Driver by BPS - Datasheet Preview — Official preview page of the **BP5131HC** High Voltage Linear LED Driver datasheet (BPS).

Datasheet Details

Part number	BP5131HC
Manufacturer	BPS
File Size	583.15 KB
Description	High Voltage Linear LED Driver
Datasheet	BP5131HC-BPS.pdf

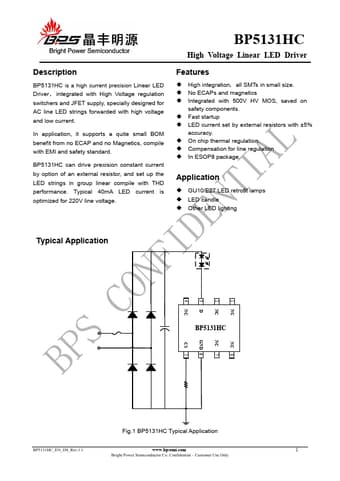

Additional preview pages of the BP5131HC datasheet.

BP5131HC Product details

Description

BP5131HC is a high current precision Linear LED Driver ， integrated with High Voltage regulation switchers and JFET supply, specially designed for AC line LED strings forwarded with high voltage and low current.

Features

u High integration，all SMTs in small size. u No ECAPs and magnetics u Integrated with 500V HV MOS, saved on safety components. u Fast startup u LED current set by external resistors with ±5% accuracy. u On chip thermal regulation. u Compensation for line regulation u In ESOP8 package.
