BP5136H

High Voltage Linear LED Driver

BP5136H Features

* High integration，all SMTs in small size.

* No ECAPs and magnetics

* Integrated with 700V/500V HV MOS, saved on safety components.

* Align working wit

BP5136H General Description

BP5136H is a high current precision Linear LED Driver ， integrated with High Voltage regulation switchers and JFET supply, specially designed for AC line LED strings forwarded with high voltage and low current. In application, it supports a quite small BOM benefit from no ECAP and no Magnetics, comp.

BP5136H Datasheet (545.16 KB)

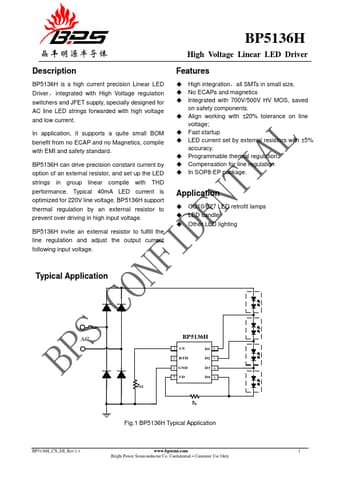

Preview of BP5136H PDF

Datasheet Details

Part number:

BP5136H

Manufacturer:

BPS

File Size:

545.16 KB

Description:

High voltage linear led driver.
