BP5131S - High Voltage Linear LED Driver

BPS

The BP5131S by BPS is a High Voltage Linear LED Driver. Below is the official datasheet preview.

📥 Download Datasheet

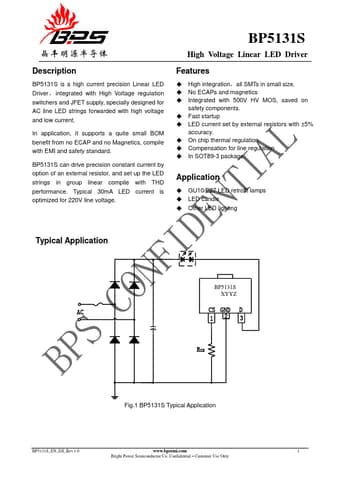

BP5131S High Voltage Linear LED Driver by BPS - Datasheet Preview — Official preview page of the **BP5131S** High Voltage Linear LED Driver datasheet (BPS).

Datasheet Details

Part number	BP5131S
Manufacturer	BPS
File Size	437.03 KB
Description	High Voltage Linear LED Driver
Datasheet	BP5131S-BPS.pdf
Additional preview pages of the BP5131S datasheet.

BP5131S Product details

Description

BP5131S is a high current precision Linear LED Driver ， integrated with High Voltage regulation switchers and JFET supply, specially designed for AC line LED strings forwarded with high voltage and low current.

Features

High integration，all SMTs in small size.
No ECAPs and magnetics.
Integrated with 500V HV MOS, saved on safety components.
Fast startup.
LED current set by external resistors with ±5% accuracy.
On chip thermal regulation.
Compensation for line regulation.
In SOT89-3 package.
