BP5136HC

High Voltage Multi-channel linear LED Driver

BP5136HC Features

* Simple BOM, small size

* No electrolytic capacitor or magnetic component needed

* Integrated with 500V MOS

* Can working with ±20 % variation on line voltage;

* Fast start-up

* ±5% output LED current accuracy

* External setting of LED current

* Input line voltage co

BP5136HC General Description

BP5136HC is a high-precision multi-channel linear LED driver which integrates high voltage rectifier and JFET for IC power supply. It is mainly used to drive high-voltage and low-current LED strings from AC mains directly. BP5136HC can achieve small size、long life and compliance with EMI regulations.

BP5136HC Datasheet (425.06 KB)

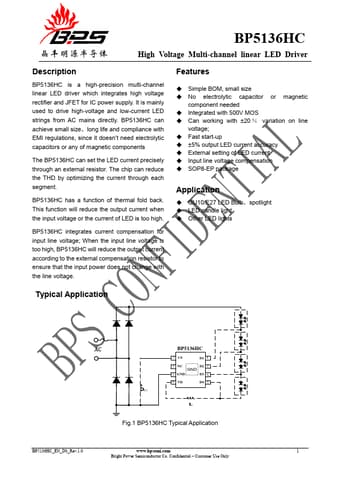

Preview of BP5136HC PDF

Datasheet Details

Part number:

BP5136HC

Manufacturer:

BPS

File Size:

425.06 KB

Description:

High voltage multi-channel linear led driver.
