BP5912A

Color Temperature Switch LED Driver

BP5912A Features

* Integrates switching state detection circuits

* Built-in two 0.5A/400V silicon controlled rectifier

* Fixed three kinds of color temperature switch

* VDD short protection

* Available in SOP-8 package Applications

* LED ceiling lamp

* LED Panel light

* LED Bulb

BP5912A General Description

The BP5912A is a special color temperature switch LED driver , the BP5912A integrates two 0.5A/400V silicon controlled rectifier,realize color temperature switch function by detecting the LED driver switching waveform directly,the BP5912A maximally simplify the periphery components number,ensure the.

BP5912A Datasheet (214.48 KB)

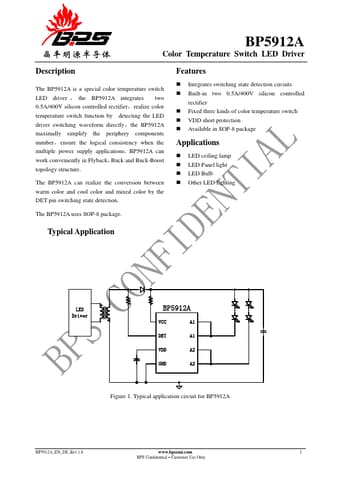

Preview of BP5912A PDF

Datasheet Details

Part number:

BP5912A

Manufacturer:

BPS

File Size:

214.48 KB

Description:

Color temperature switch led driver.
