BP9912A Datasheet, Driver, BPS

BP9912A Features

  • Driver
  • Internal 500V Power MOSFET
  • Integrated HV JFET for VCC Power Supply
  • Critical Conduction Mode Operation
  • Low Operating Current
  • ±5% LED Out

PDF File Details

Part number:

BP9912A

Manufacturer:

BPS

File Size:

805.56kb

Download:

📄 Datasheet

Description:

Non-isolated buck constant current led driver. BP9912A is a high precision Buck constant current LED driver. The device operates in critical conduction mode and is suitable for 85V

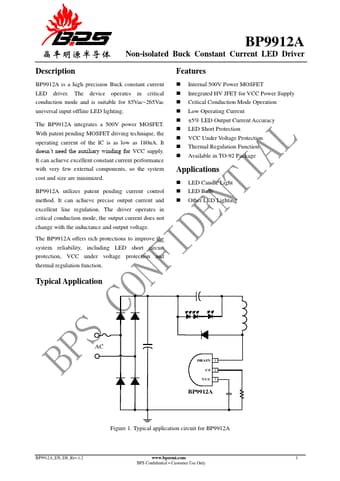

Datasheet Preview: BP9912A 📥 Download PDF (805.56kb)
Page 2 of BP9912A Page 3 of BP9912A

BP9912A Application

  • Applications
  • LED Candle Light
  • LED Bulb
  • Other LED Lighting Typical Application AC DRAIN 3 CS 2 VCC 1 BP9912A BP9912A
