BP9912B Datasheet - BPS

Non-isolated Buck Constant Current LED Driver

BP9912B Features

* Internal 500V Power MOSFET

* Integrated HV JFET for VCC Power Supply

* Critical Conduction Mode Operation

* Low Operating Current

* ±5% LED Output Current Accuracy

* LED Short Protection

* VCC Under Voltage Protection

* Thermal Regulation Function

* Available in

BP9912B General Description

BP9912B is a high precision Buck constant current LED driver. The device operates in critical conduction mode and is suitable for 85Vac~265Vac universal input offline LED lighting. The BP9912B integrates a 500V power MOSFET. With patent pending MOSFET driving technique, the operating current of the .

BP9912B Datasheet (739.10 KB)

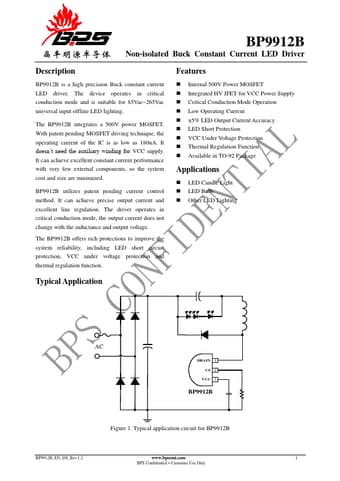

BP9912B Datasheet Preview — Preview of BP9912B PDF

Datasheet Details

Part number:

BP9912B

Manufacturer:

BPS

File Size:

739.10 KB

Description:

Non-isolated buck constant current led driver.
