BP9911B Non-isolated Buck Offline LED Driver

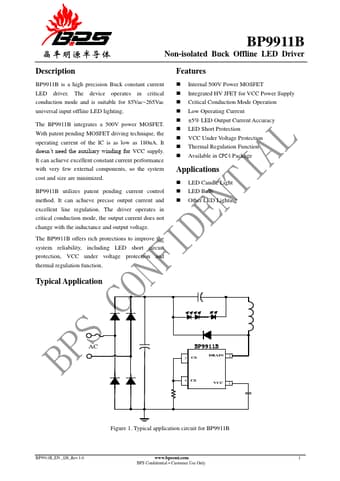

📥 Download Datasheet  Datasheet Preview Page 1

Description

BP9911B Non-isolated Buck Offline LED Driver .
BP9911B is a high precision Buck constant current LED driver.

📥 Download Datasheet

Preview of BP9911B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BP9911B
Manufacturer
BPS
File Size
397.49 KB
Datasheet
BP9911B-BPS.pdf
Description
Non-isolated Buck Offline LED Driver

Features

* Internal 500V Power MOSFET
* Integrated HV JFET for VCC Power Supply
* Critical Conduction Mode Operation
* Low Operating Current
* ±5% LED Output Current Accuracy
* LED Short Protection
* VCC Under Voltage Protection
* Thermal Regulation Function
* Available in

Applications

* LED Candle Light
* LED Bulb
* Other LED Lighting Typical Application AC BP9911B 3 CS DRAIN 2 4 CS VCC 1 Figure 1. Typical application circuit for BP9911B BP9911B_EN _DS_Rev.1.0 www. bpsemi. com 1 BPS Confidential
* Customer Use Only BP9911B Non-isolated Buck Offlin
