BP9911CC, Non-isolated Buck Offline LED Driver

BP9911CC Non-isolated Buck Offline LED Driver .
BP9911CC is a high precision Buck constant current LED driver.

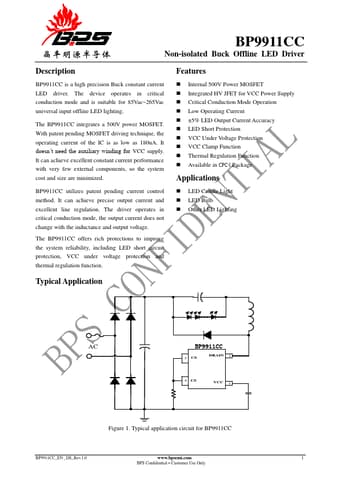

datasheet Preview Page 1 from Datasheet4u.com

BP9911CC-BPS.pdf

BP9911CC Datasheet Preview — Preview of BP9911CC PDF

Datasheet Details

Part number:

BP9911CC

Manufacturer:

BPS

File Size:

397.79 KB

Description:

Non-isolated Buck Offline LED Driver

Features

* Internal 500V Power MOSFET
* Integrated HV JFET for VCC Power Supply
* Critical Conduction Mode Operation
* Low Operating Current
* ±5% LED Output Current Accuracy
* LED Short Protection
* VCC Under Voltage Protection
* VCC Clamp Function
* Thermal Regulation Fu

Applications

* LED Candle Light
* LED Bulb
* Other LED Lighting Typical Application AC BP9911CC 3 CS DRAIN 2 4 CS VCC 1 Figure 1. Typical application circuit for BP9911CC BP9911CC_EN _DS_Rev.1.0 www. bpsemi. com 1 BPS Confidential
* Customer Use Only BP9911CC Non-isolated Buck Of
