BS-C552RD - digit segments display

Product Overview

BRIGHT LED ELECTRONICS

Datasheet Details

Part number	BS-C552RD
Manufacturer	BRIGHT LED ELECTRONICS
File Size	207.95 KB
Description	digit segments display
Datasheet	BS-C552RD Datasheet
Additional preview pages of the BS-C552RD datasheet.

Product details

Description

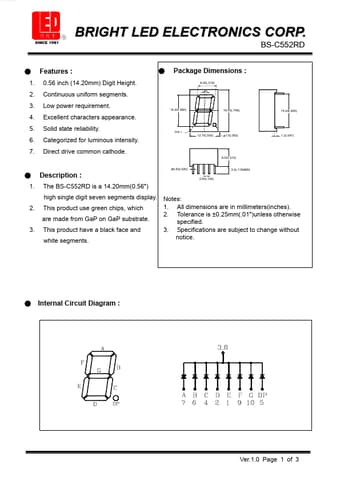

: The BS-C552RD is a 14.20mm(0.56") 3.0(.118)MIN.2.54(.100) high single digit seven segments display.Notes: 1. All dimensions are in millimeters(inches).This product use green chips, which 2. Tolerance is ±0.25mm(.01")unless otherwise are made from GaP on GaP substrate.specified.3. Specifications are subject to change without This product have a black face and notice.white segments. Internal Circuit Diagram : Ver.1.0 Page 1 of 3 BRIGHT LED ELECTRONICS CORP.SINCE 1981 BS-C552R

Features

: 0.56 inch (14.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.
Package Dimensions : 8.00(.315) 8 14.20(.560) 19.00(.748) 15.24(.600) + PIN 1. 12.70(.500) 1.5(.063) 1.2(.047) 8.00(.314) 0.50(.020).
