BS-C555RD-B - digit segments display

Product Overview

BRIGHT LED ELECTRONICS

Datasheet Details

Part number	BS-C555RD-B
Manufacturer	BRIGHT LED ELECTRONICS
File Size	210.13 KB
Description	digit segments display
Datasheet	BS-C555RD-B Datasheet
Additional preview pages of the BS-C555RD-B datasheet.

Product details

Description

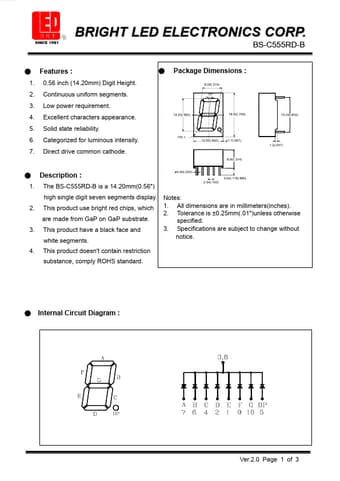

: The BS-C555RD-B is a 14.20mm(0.56") 0.50(.020) 3.00(.118) MIN.2.54(.100) high single digit seven segments display.Notes: 1. All dimensions are in millimeters(inches).This product use bright red chips, which 2. Tolerance is ±0.25mm(.01")unless otherwise are made from GaP on GaP substrate.specified.3. Specifications are subject to change without This product have a black face and notice.white segments.This product doesn't contain restriction substance, comply ROHS standard. Inte

Features

: 0.56 inch (14.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.
Package Dimensions : 8.00(.315) 10 14.20(.560) 18.00(.709) 15.24(.600) + PIN 1. 12.50(.492) 1.7(.067) 1.2(.047) 8.00(.314).
1. 2. 3. 4.
