BS-C554RD - digit segments display

Product Overview

BRIGHT LED ELECTRONICS

Datasheet Details

Part number	BS-C554RD
Manufacturer	BRIGHT LED ELECTRONICS
File Size	205.24 KB
Description	digit segments display
Datasheet	BS-C554RD Datasheet
Additional preview pages of the BS-C554RD datasheet.

Product details

Description

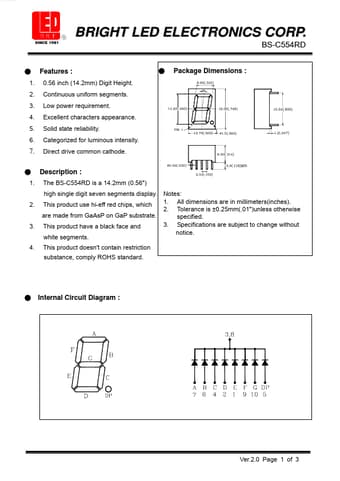

: The BS-C554RD is a 14.2mm (0.56") high single digit seven segments display.Notes: 1. All dimensions are in millimeters(inches).This product use hi-eff red chips, which 2. Tolerance is ±0.25mm(.01")unless otherwise are made from GaAsP on GaP substrate.specified.3. Specifications are subject to change without This product have a black face and notice.white segments.This product doesn't contain restriction substance, comply ROHS standard. Internal Circuit Diagram : Ver.2.0 Page 1 o

Features

: 0.56 inch (14.2mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.
Package Dimensions : 7.
1. 2. 3. 4.
