BM810, BM809 - Reset IC

Name: BM810
SKU: BM810-1296118

BYD

The BM810 by BYD is a Reset IC. Below is the official datasheet preview.

Datasheet Details

Part number	BM810, BM809
Manufacturer	BYD
File Size	195.64 KB
Description	Reset IC
Datasheet	BM809-BYD.pdf
Note	This datasheet PDF includes multiple part numbers: BM810, BM809. Please refer to the document for exact specifications by model.

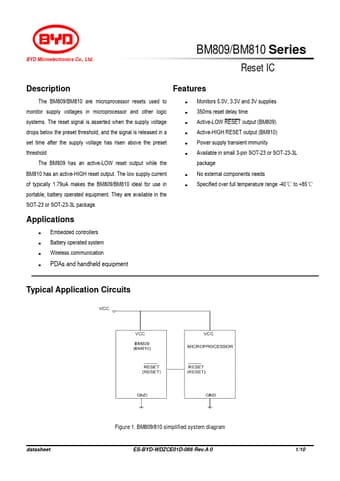

Additional preview pages of the BM810 datasheet.

The BM809/BM810 are microprocessor resets used to monitor supply voltages in microprocessor and other logic systems. The reset signal is asserted when the supply voltage drops below the preset threshold, and the signal is released in a set time after the supply voltage has risen above the preset threshold The BM809 has an active-LOW reset output while the BM810 has an active-HIGH reset output. The low supply current of typically 1.79uA makes the BM809/BM810 ideal for use in portable, battery op.
