BM81006MWW

I2C Control Multi-channel System Power Supply IC

BM81006MWW Features

* Asynchronous Buck Converter for VDD x3

* Asynchronous Boost Converter for AVDD

* Synchronous Buck Converter with Built-in FET for HAVDD

* Asynchronous Boost Converter for VGH

* VGH Low Temperature Compensation Function

BM81006MWW General Description

BM81006MWW is a system power supply for TFT-LCD. It generates required bias voltage for source driver, T-con and Gate driver: VDD1, VDD2, VDD3, AVDD, HAVDD, VGH, VGL, VCLP, VCLN, VCOM, GAMMA and GPM. I2C BUS control enables free setting of output voltage and sequences. Key Specifications * VIN.

BM81006MWW Datasheet (3.71 MB)

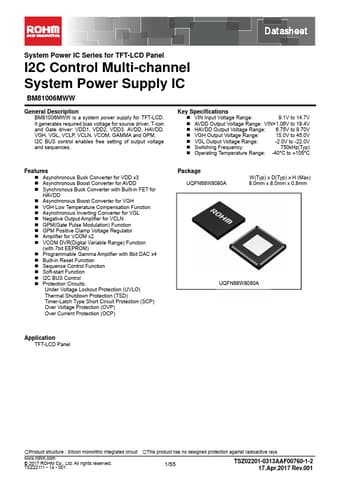

Preview of BM81006MWW PDF

Datasheet Details

Part number:

BM81006MWW

Manufacturer:

ROHM ↗

File Size:

3.71 MB

Description:

I2c control multi-channel system power supply ic.
