B4300 - 300mA Positive CMOS LDO

📥 Download Datasheet

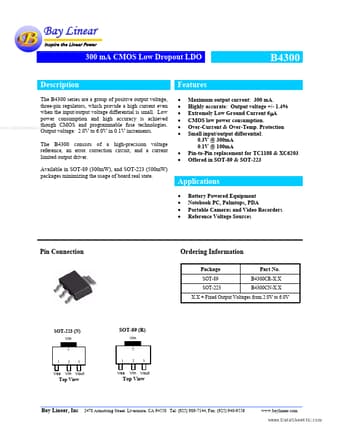

B4300 Datasheet Preview — Preview of B4300 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: B4300
Manufacturer: Bay Linear
File Size: 226.33 KB
Datasheet: B4300_BayLinear.pdf
Description: 300mA Positive CMOS LDO

B4300 Product details

Description

The B4300 series are a group of positive output voltage, three-pin regulators, which provide a high current even when the input/output voltage differential is small..

Features

Maximum output current: 300 mA. Highly accurate: Output voltage +/- 1.4% Extremely Low Ground Current 6µA CMOS low power consumption. Over-Current & Over-Temp. Protection Small input/output differential: 0.3V @ 300mA 0.1V @ 100mA Pin-to-Pin replacement for TC1108 & XC6203 Offered in SOT-89 & SOT-223.
