B432BM

1.25V Adjustable Shunt Regulator

B432BM Datasheet (111.58 KB)

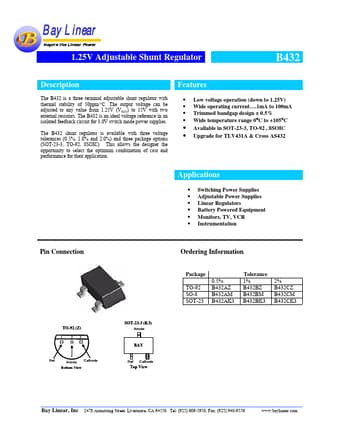

Preview of B432BM PDF

Datasheet Details

Part number:

B432BM

Manufacturer:

ETC

File Size:

111.58 KB

Description:

1.25v adjustable shunt regulator.

B432BM Features

* Low voltage operation (down to 1.25V) Wide operating current….1mA to 100mA Trimmed bandgap design ± 0.5% Wide temperature range 0°C to +105°C Available in SOT-23-3, TO-92 , 8SOIC Upgrade for TLV431A & Cross AS432

* Applications

B432BM General Description

The B432 is a three terminal adjustable shunt regulator with thermal stability of 50ppm/°C. The output voltage can be adjusted to any value from 1.25V (VREF) to 15V with two external resistors. The B432 is an ideal voltage reference in an isolated feedback circuit for 3.0V switch mode power supplies.
