B432BK3

1.25V Adjustable Shunt Regulator

B432BK3 Datasheet (111.58 KB)

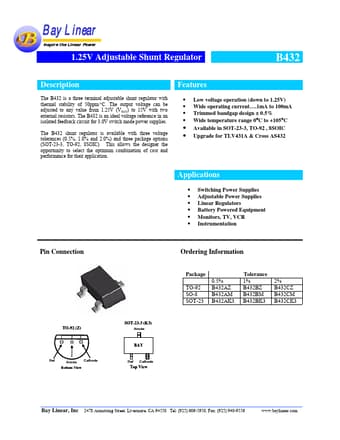

Preview of B432BK3 PDF

Datasheet Details

Part number:

B432BK3

Manufacturer:

ETC

File Size:

111.58 KB

Description:

1.25v adjustable shunt regulator.

B432BK3 Features

* Low voltage operation (down to 1.25V) Wide operating current….1mA to 100mA Trimmed bandgap design ± 0.5% Wide temperature range 0°C to +105°C Available in SOT-23-3, TO-92 , 8SOIC Upgrade for TLV431A & Cross AS432

* Applications

B432BK3 General Description

The B432 is a three terminal adjustable shunt regulator with thermal stability of 50ppm/°C. The output voltage can be adjusted to any value from 1.25V (VREF) to 15V with two external resistors. The B432 is an ideal voltage reference in an isolated feedback circuit for 3.0V switch mode power supplies.
