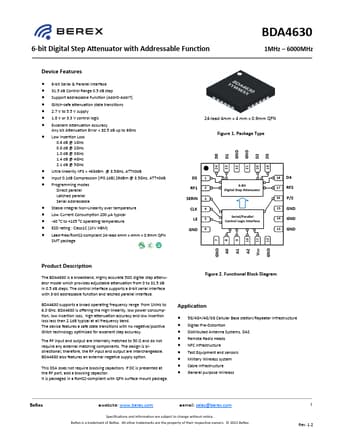

Additional preview pages of the BDA4630 datasheet.

Product details

Description

The BDA4630 is a broadband, Highly accurate 50Ω digital step attenuator model which provides adjustable attenuation from 0 to 31.5 dB in 0.5 dB steps.

Features

6-bit Serial & Parallel Interface.
31.5 dB Control Range 0.5 dB step.
Support addressable Function (Addr0-Addr7).
Glitch-safe attenuation state transitions.
2.7 V to 5.5 V supply.
1.8 V or 3.3 V control logic.
Excellent Attenuation Accuracy Any bit Attenuation Error < ±0.5 dB up to 6GHz.
Low Insertion Loss 0.6 dB @ 1GHz 0.8 dB @ 2GHz 1.0 dB @ 3GHz 1.4 dB @ 4GHz 2.1 dB @ 5GHz.
Ultra linearity IIP3 > +63dBm @ 3.5GHz,.
