BDA4710 Datasheet - BeRex

7-bit Digital Step Attenuator

BDA4710 Features

* 7-bit Serial & Parallel Interface

* 31.75 dB Control Range 0.25 dB step

* Support addressable Function (Addr0-Addr7)

* Glitch-safe attenuation state transitions

* 2.7 V to 5.5 V supply

* 1.8 V or 3.3 V control logic

* Excellent Attenuation Ac

BDA4710 General Description

The BDA4710 is a broadband, Highly accurate 50Ω digital step attenuator model which provides adjustable attenuation from 0 to 31.75 dB in 0.25 dB steps. The control interface supports a 7-bit serial interface with 3-bit addressable function and latched parallel interface. BDA4710 supports a broad op.

BDA4710 Datasheet (1.80 MB)

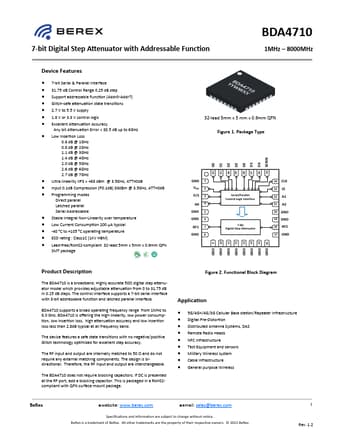

BDA4710 Datasheet Preview — Preview of BDA4710 PDF

Datasheet Details

Part number:

BDA4710

Manufacturer:

BeRex

File Size:

1.80 MB

Description:

7-bit digital step attenuator.
