BDA4730 Datasheet - BeRex

7-bit Digital Step Attenuator

BDA4730 Features

* 7-bit Serial & Parallel Interface

* 31.75 dB Control Range 0.25 dB step

* Support addressable Function (Addr0-Addr7)

* Glitch-safe attenuation state transitions

* 2.5 V to 5.5 V supply

* Excellent Attenuation Accuracy Any bit Attenuation Error < ±0.5

BDA4730 General Description

The BDA4730 is a broadband, Highly accurate 50Ω digital step attenuator model which provides adjustable attenuation from 0 to 31.75 dB in 0.25 dB steps. The control interface supports a 7-bit serial interface with 3-bit addressable function and latched parallel interface. The BDA4730 has an optional.

BDA4730 Datasheet (1.81 MB)

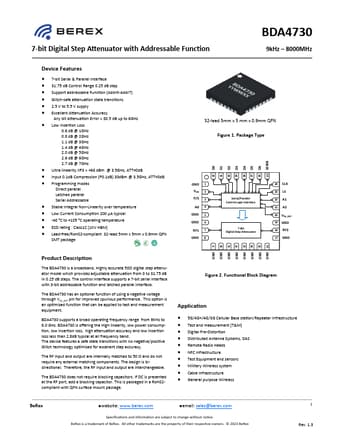

BDA4730 Datasheet Preview — Preview of BDA4730 PDF

Datasheet Details

Part number:

BDA4730

Manufacturer:

BeRex

File Size:

1.81 MB

Description:

7-bit digital step attenuator.
