BGM26 Gain Block 2stage AMP

📥 Download Datasheet  Datasheet Preview Page 1

Description

BGM26 1700-6000 MHz Gain Block 2stage AMP Device .
The BGM26 is a 2stage Gain Block Amp for Higher Electrical Specifications Device performance _ measured on a BeRex evaluation board at 25°C, Vd=5V,.

📥 Download Datasheet

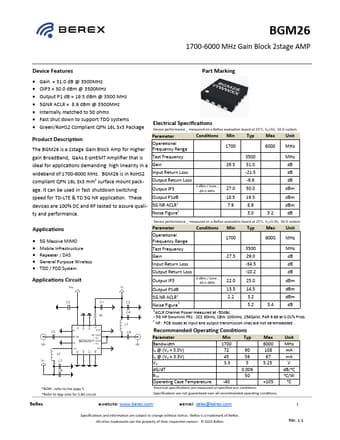

Preview of BGM26 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
BGM26
Manufacturer
BeRex
File Size
0.97 MB
Datasheet
BGM26-BeRex.pdf
Description
Gain Block 2stage AMP

Features

* Part Marking
* Gain = 31.0 dB @ 3500MHz
* OIP3 = 30.0 dBm @ 3500MHz
* Output P1 dB = 19.5 dBm @ 3500 MHz
* 5GNR ACLR = 8.9 dBm @ 3500MHz
* Internally matched to 50 ohms
* Fast shut down to support TDD systems
* Green/RoHS2 Compliant QFN

Applications

* demanding high linearity in a Gain 29.5 31.0 dB wideband of 1700-6000 MHz. BGM26 is in RoHS2 Input Return Loss -21.5 dB compliant QFN 16L 3x3 mm2 surface mount pack- Output Return Loss -9.6 dB age. It can be used in fast shutdown switching Output IP3 2 dBm / tone , Δf=1 MHz 27.0 30.0 d
