ORD9202 Datasheet - Bedford Opto Technology

ORD9202 3mm LED ASSEMBLY IN LINE PINNING

ORD 9202 SERIES www.DataSheet4U.com 3mm LED ASSEMBLY IN LINE PINNING The ORD-9202 series is a family of display devices using a Black Nylon 6 UL-94Vo rated housing to mount one or two 3mm LEDs at right angles to a PCB. The pin out is in line on 0.1” centres and the package is available with or without an additional alignment pin. In any one batch the LEDs are lumenous intensity matched. Accurate alignment of LEDs. Matched LEDs. Any colour combination, Polarity and.

ORD9202_BedfordOptoTechnology.pdf

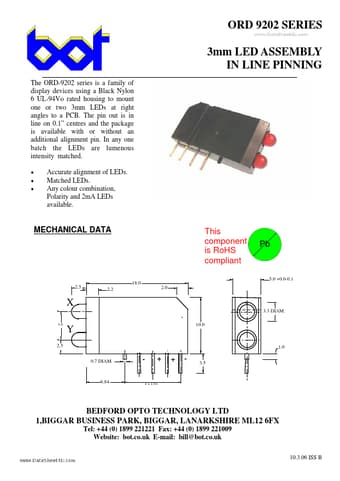

Preview of ORD9202 PDF
ORD9202 Datasheet Preview Page 2

Datasheet Details

Part number:

ORD9202

Manufacturer:

Bedford Opto Technology

File Size:

53.37 KB

Description:

3mm led assembly in line pinning.
