ORD1M13

Infrared Range Finding Sensor

ORD1M13 Features

* LEDPSD A triangulation system that uses an infrared LED and a PSD

* LEDPSD Integrated LED drive circuit and PSD signal processing circuit

* Digital output that switches at a specified distance from an object

* : 250±50mm Middle range detecting distance: 250±50mm MAXIMUM RATINGS

ORD1M13 Datasheet (173.19 KB)

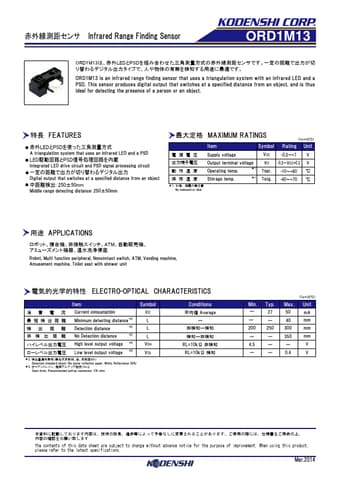

Preview of ORD1M13 PDF

Datasheet Details

Part number:

ORD1M13

Manufacturer:

KODENSHI

File Size:

173.19 KB

Description:

Infrared range finding sensor.
Infrared Range Finding Sensor ORD1M13 ORD1M13、LEDPSD。 、。 ORD1M13 is an infrared range finding sensor that uses a triangulation system with an infra.
