ORD9702XY Datasheet - Bedford Opto Technology

ORD9702XY 3mm PCB MOUNTED LEDS

ORD 9702XY ORE 9701X 3mm PCB MOUNTED LEDS www.DataSheet4U.com An assembly containing one or two 3mm LEDS. The housings provide convenient and rigid mountings for a double row of LEDs on 0.2 inch vertical pitch. Compact double row of LEDs in black Nylon 6 V0 rated housings. Alignment key Matched brightness Low current 2mA LEDs available. ORE9701 Bottom LED only MECHANICAL DATA 5.08 3.85 10.0 This component is RoHS compliant Pb X 5.08 5.0 2.5.

ORD9702XY_BedfordOptoTechnology.pdf

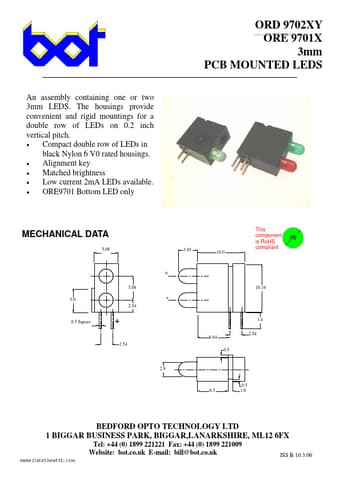

Preview of ORD9702XY PDF
ORD9702XY Datasheet Preview Page 2

Datasheet Details

Part number:

ORD9702XY

Manufacturer:

Bedford Opto Technology

File Size:

53.90 KB

Description:

3mm pcb mounted leds.
