S558-0139-00 Datasheet - Bel Fuse

S558-0139-00 HIGH SPEED LAN MAGNETICS

defining a degree of excellence HIGH SPEED LAN MAGNETICS 960025A For use in 100Base-TX, 10/100Base-TX, ATM 155 or 100 Mbps TP-FDDI applications Compatible with multiple PHY transceivers 350 µH min OCL (inductance) with 8mA DC bias Low profile, surface mount packaging available Low cost, transmit or receive channel solution 2000 Vrms isolation ELECTRICALS AT 25°C www.DataSheet4U.com Part No. S558-0139-00 S558-3855-00 S558-5999-02 S558.

S558-0139-00_BelFuse.pdf

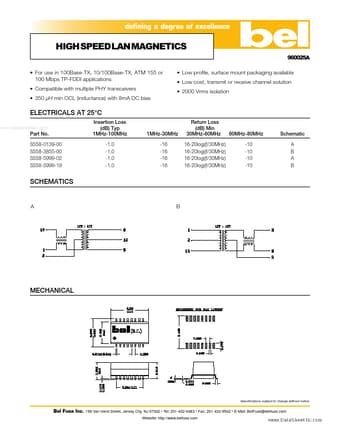

Preview of S558-0139-00 PDF
S558-0139-00 Datasheet Preview Page 2

Datasheet Details

Part number:

S558-0139-00

Manufacturer:

Bel Fuse

File Size:

230.72 KB

Description:

High speed lan magnetics.
