S558-1287-xx HIGH SPEED LAN MAGNETICS

📥 Download Datasheet Datasheet Preview Page 1

Description

defining a degree of excellence HIGH SPEED LAN MAGNETICS 960007A * Tested and qualified for use with Microlinear's ML 6692/6694/6698 10/100 M.

📥 Download Datasheet

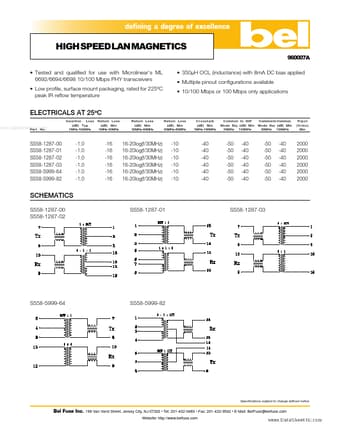

Preview of S558-1287-xx PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
S558-1287-xx
Manufacturer
Bel Fuse
File Size
373.69 KB
Datasheet
S558-1287-xx_BelFuse.pdf
Description
HIGH SPEED LAN MAGNETICS

Applications

* ELECTRICALS AT 25ºC www. DataSheet4U. com Part No. Insertion Loss (dB) Typ 1MHz-100MHz Return Loss (dB) Min 1MHz-30MHz Return Loss (dB) Min 30MHz-60MHz Return Loss (dB) Min 60MHz-80MHz Crosstalk (dB) Min 1MHz-100MHz Common to Diff Mode Rej (dB) Min 30MHz 100MHz Common to Common Mode Rej (dB) Min 30MH
