IR423

A-ISOMETER - Insulation monitoring device

IR423 Features

* Insulation monitoring for mobile gene- rators AC 0…300 V

* Option “W”: For high mechanical stress when using the protective measure “Protective separation with insulation monitoring and disconnection”

* Two separately adjustable response values

* Connection monitori

IR423 General Description

The IR423 A-ISOMETER® monitors the insulation resistance RF of an unearthed AC system of 0…300 V to earth that is supplied by a mobile generator according to IEC 60364-5-551 (DIN VDE 0100-551). The IR423 is suitable for AC systems with operating frequencies ≥ 30 Hz as well as for AC systems with dir.

IR423 Datasheet (269.39 KB)

IR423 Datasheet Preview — Preview of IR423 PDF

Datasheet Details

Part number:

IR423

Manufacturer:

Bender

File Size:

269.39 KB

Description:

A-isometer - insulation monitoring device.

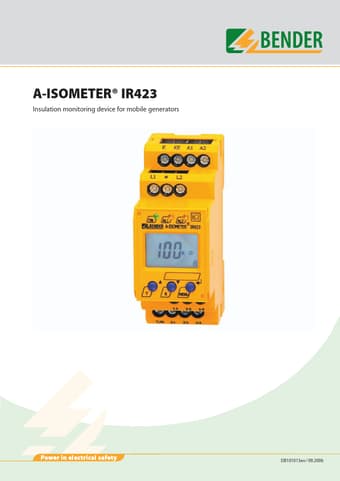

A-ISOMETER® IR423 Insulation monitoring device for mobile generators DB101013en / 09.2006 A-ISOMETER® IR423 Insulation monitoring device for mobile .
