IR4007K

Switched Power-Supply

IR4007K Features

* Primary current mode control, and secondary

* Vcc Over-voltage protection (latched)

* Over-current & over-temperature protection

* Quasi resonant, variable frequency operation

* 5 pin TO262 package

* 0.4Ω Rds(on) max/ 200V MOSFET

* Fully Char

IR4007K General Description

The IR4007 is a dual mode voltage and current controller combined with a MOSFET in a single Package. The IR4007 is designed for use in AC/DC and DC/DC switching power supplies upto 100VDC nominal input. The device can operate in either a quasi-resonant or Pulse Ratio Control (PRC) mode, and thereby.

IR4007K Datasheet (64.64 KB)

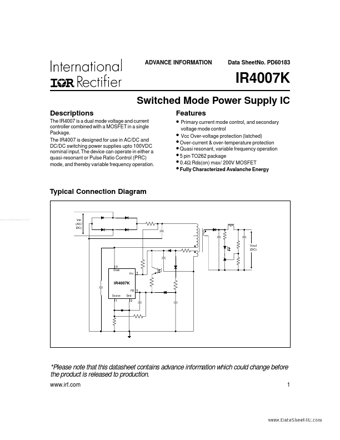

Preview of IR4007K PDF

Datasheet Details

Part number:

IR4007K

Manufacturer:

International Rectifier

File Size:

64.64 KB

Description:

Switched power-supply.
