IR42-21C

1.8MM ROUND SUBMINIATURE INFRARED LED

IR42-21C Features

* ․Compatible with infrared and vapor phase reflow solder process. ․Low forward voltage ․Good spectral matching to Si photodetector ․Pb free Descriptions ․IR42-21C is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. ․The device

IR42-21C General Description

․IR42-21C is an infrared emitting diode in miniature SMD package which is molded in a water clear plastic with spherical top view lens. ․The device is spectrally matched with silicon photodiode and phototransistor. DataSheet4U.com Applications DataShee ․PCB mounted infrared sensor ․Infrared emit.

IR42-21C Datasheet (398.59 KB)

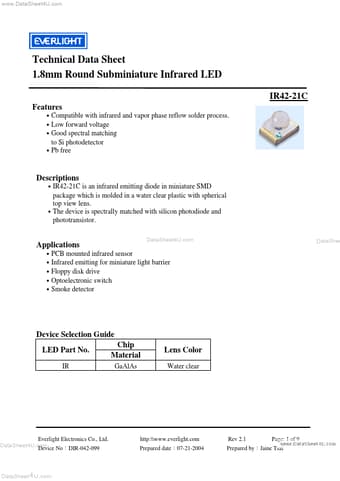

Preview of IR42-21C PDF

Datasheet Details

Part number:

IR42-21C

Manufacturer:

ETC

File Size:

398.59 KB

Description:

1.8mm round subminiature infrared led.
