TA5013 Datasheet - BestJob

TA5013 (TA50xx) T1/E1/IDSN Pri Transformer

T1/E1/ISDN-PRI Transformer ★ Designed for T1/E1/CEPT Line Interface ★ Matched to leading transceiver ICs ★ Single Reinforced Insulation, 3KVrms ★ Design to meet ITU-T G.703 Specifications PN TA5003 TA5004 TA5005 TA5006 TA5008 TA5009 TA5010 TA5011 TA5012 TA5013 Turn Ratio 1:1.36CT 1CT:2CT 1:1 1CT:2CT 1:1.08:1.36 1:1.4CT 1:1/1.26 1:1.58/2 1CT:1.41CT 1CS:1 OCL (mH Min) 1.2 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.2 0.8 LL (uH Max) 0.6 0.55 0.5 0.8 0.6 1.0 0.6 0.7 0.8 0.7 CWW (pF Max) 35 20 20 15 20 30 35 20 2.

TA5013 Datasheet (198.90 KB)

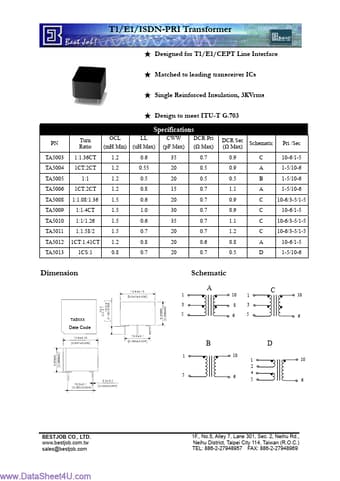

TA5013 Datasheet Preview — Preview of TA5013 PDF

Datasheet Details

Part number:

TA5013

Manufacturer:

BestJob

File Size:

198.90 KB

Description:

(ta50xx) t1/e1/idsn pri transformer.
