C536 NPN Silicon Transistor

2SC536 NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications. The transistor is subdivided into four groups, O, Y, G and L, according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. 1. Emitter 2. Collector 3. Base TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25℃) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Base C.

C536 Datasheet (68.08 KB)

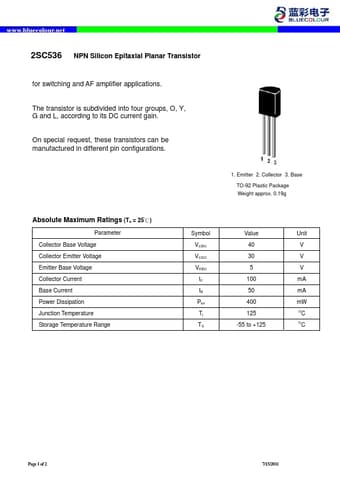

C536 Datasheet Preview — Preview of C536 PDF

Datasheet Details

Part number:

C536

Manufacturer:

Bluecolour

File Size:

68.08 KB

Description:

Npn silicon transistor.
