BDW24B PNP Transistor

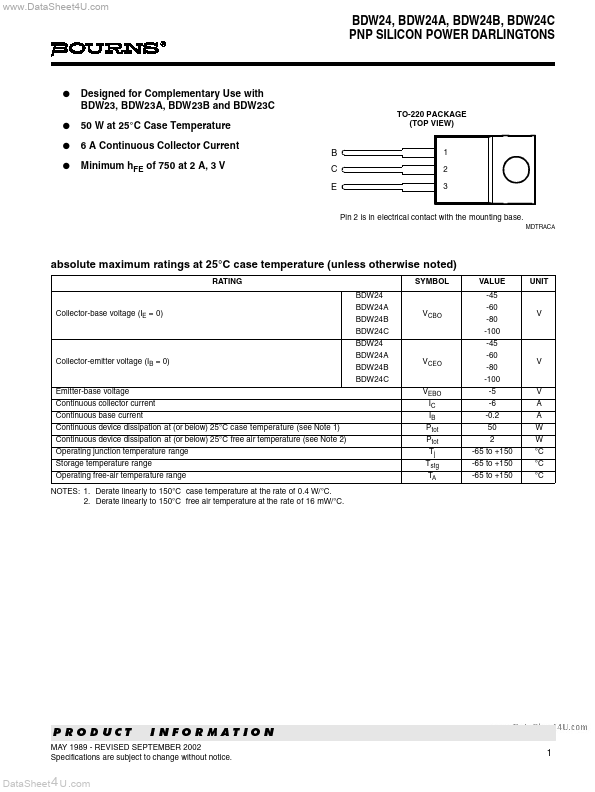

www.DataSheet4U.com BDW24, BDW24A, BDW24B, BDW24C PNP SILICON POWER DARLINGTONS Designed for Complementary Use with BDW23, BDW23A, BDW23B and BDW23C 50 W at 25°C Case Temperature 6 A Continuous Collector Current Minimum hFE of 750 at 2 A, 3 V TO-220 PACKAGE (TOP VIEW) B 1 C 2 E 3 Pin 2 is in electrical contact with the mounting base. MDTRACA absolute maximum ratings at 25°C case temperature (unless otherwise noted) RATING Collector-base voltage (IE = 0) Colle.
