GDT225EX-80, GDT225EX-50 - Very High Energy Gas Discharge Tube Arrestor

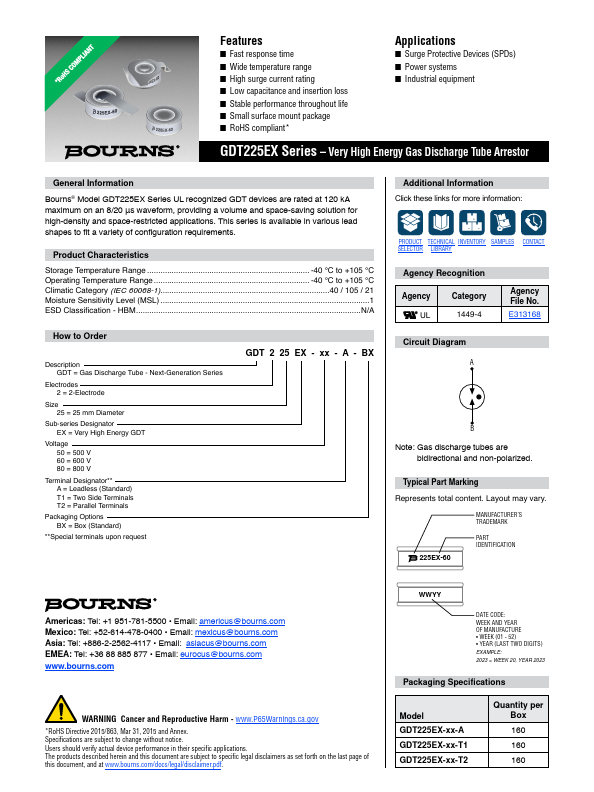

GDT225EX-80 Description

.
GDT = Gas Discharge Tube - Next-Generation Series Electrodes 2 = 2-Electrode Size 25 = 25 mm Diameter Sub-series Designator EX = Very High Energy GDT.

GDT225EX-80 Features

* Fast response time
* Wide temperature range
* High surge current rating
* Low capacitance and insertion loss
* Stable performance throughout life
* Small surface mount package
* RoHS compliant

GDT225EX-80 Applications

* Surge Protective Devices (SPDs)
* Power systems
* Industrial equipment GDT225EX Series
* Very High Energy Gas Discharge Tube Arrestor General Information Bourns® Model GDT225EX Series UL recognized GDT devices are rated at 120 kA maximum on an 8/20 μs waveform, providing a vo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GDT225EX-80, GDT225EX-50. Please refer to the document for exact specifications by model.

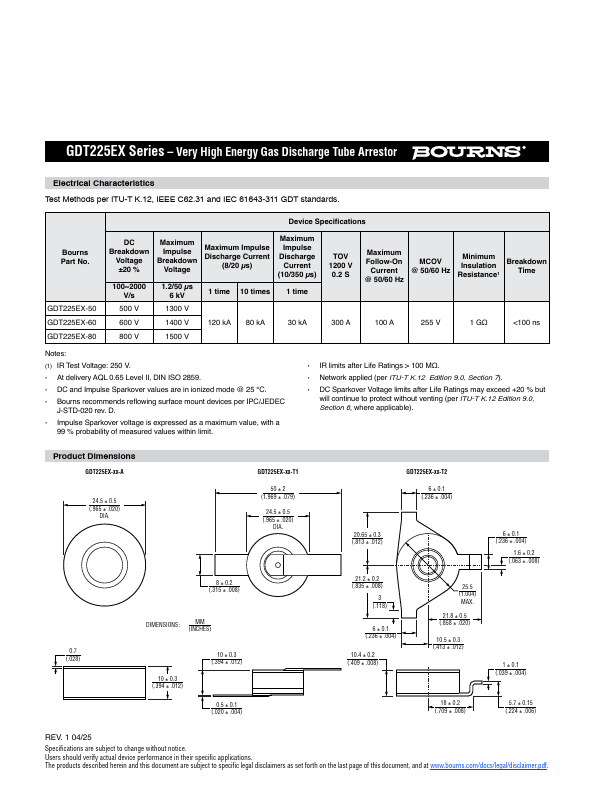

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GDT225EX-80, GDT225EX-50
Manufacturer
Bourns
File Size
474.68 KB
Datasheet
GDT225EX-50-Bourns.pdf
Description
Very High Energy Gas Discharge Tube Arrestor
Note
This datasheet PDF includes multiple part numbers: GDT225EX-80, GDT225EX-50.
Please refer to the document for exact specifications by model.
