GDT-S-88 - Modukar Jacks and Plugs

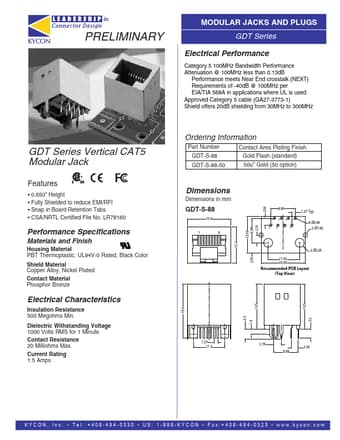

KYCON Video Connectors MODULAR JACKS AND PLUGS PRELIMINARY http://www.kycon.com (888)KYCON-22 GDT Series Electrical Performance HIGH TEMP Category 5 100MHz Bandwidth Performance Attenuation @ 100MHz less than 0.13dB Performance meets Near End crosstalk (NEXT) Requirements of -40dB @ 100MHz per EIA/TIA 568A in applications where UL is used Approved Category 5 cable (GA27-3773-1) Shield offers 20dB shielding from 30MHz to 300MHz Ordering Information GDT Series Vertical CAT5 Modular Jack Fea
GDT-S-88 Features
* 0.650" Height
* Fully Shielded to reduce EMI/RFI
* Snap in Board Retention Tabs
* CSA/NRTL Certified File No. LR78160 Part Number GDT-S-88 GDT-S-88-50 Contact Area Plating Finish Gold Flash (standard) 50u" Gold (50 option) Dimensions Dimensions in mm GDT-S-88 15
