GDT25

Next Generation 2-Electrode Gas Discharge Tube Arrestor

GDT25 Features

* n Fast response time n Wide temperature range n High surge current rating n Low capacitance and insertion loss n Stable performance throughout life n Small surface mount package n RoHS compliant

* Applications n Set top boxes n Industrial communications n HVAC controls n xDSL, POTS, G.Fast n Ant

GDT25 General Description

GDT = Gas Discharge Tube - Next-Generation Series GDT 2 5 - xx - S1 - RP Electrodes 2 = 2-Electrode Size 5 = 5 mm Diameter Voltage 07 = 75 V 09 = 90 V 15 = 150 V 23 = 230 V NEW! 35 = 350 V 42 = 420 V 47 = 470 V NEW! 60 = 600 V Package Designator S1 = 5 x 4.4 mm SMD (Standard) Packaging.

GDT25 Datasheet (740.75 KB)

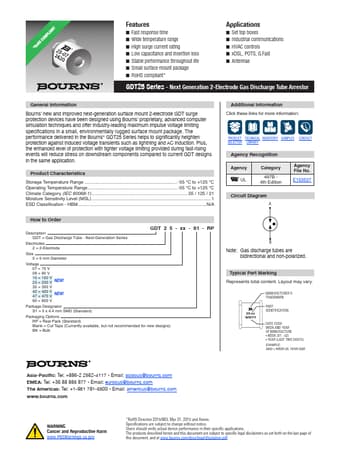

Preview of GDT25 PDF

Datasheet Details

Part number:

GDT25

Manufacturer:

Bourns

File Size:

740.75 KB

Description:

Next generation 2-electrode gas discharge tube arrestor.
