LES08A05L05

Electrostatic Discharged Protection Devices

Brightking

LES08A05L05 Features

* IEC61000-4-2 ESD 15KV Air, 8KV contact compliance

* SOIC-08 surface mount package

* Protects four I/O lines

* Peak power dissipation of 500W under 8/20μs waveform

* Working voltage: 5V

* Low leakage current

* Low capacitance and clamping voltage

* Solid-state silico

LES08A05L05 General Description

Brightking’s LES08A05L05 component is surge rated diode array designed to protect high speed data line interfaces. It has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical.

LES08A05L05 Datasheet (276.39 KB)

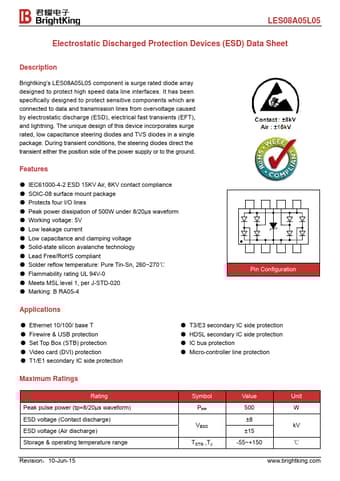

LES08A05L05 Datasheet Preview — Preview of LES08A05L05 PDF

Datasheet Details

Part number:

LES08A05L05

Manufacturer:

Brightking

File Size:

276.39 KB

Description:

Electrostatic discharged protection devices.
