LES08C24L04

Electrostatic Discharged Protection Devices

Brightking

LES08C24L04 Features

* IEC61000-4-2 ESD 15KV Air, 8KV contact compliance

* SOIC-08 surface mount package

* Protects four I/O lines

* Peak power dissipation of 500W under 8/20μs waveform

* Working voltage: 5V, 12V, 15V and 24V

* Low leakage current

* Low capacitance and clamping voltage

LES08C24L04 General Description

Brightking’s LES08CXXL04 series has been specifically designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by electrostatic discharge (ESD), electrical fast transients (EFT), and lightning. The low capacitance array configuration of.

LES08C24L04 Datasheet (268.38 KB)

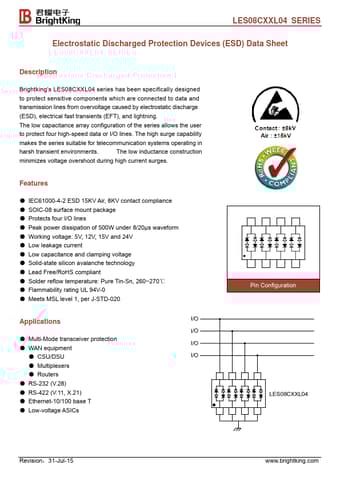

LES08C24L04 Datasheet Preview — Preview of LES08C24L04 PDF

Datasheet Details

Part number:

LES08C24L04

Manufacturer:

Brightking

File Size:

268.38 KB

Description:

Electrostatic discharged protection devices.
