LES08C12L04, LES08C05L04 - Electrostatic Discharged Protection Devices

Brightking

LES08C12L04 Description

LES08CXXL04 SERIES Electrostatic Discharged Protection Devices (ESD) Data Sheet .
Brightking’s LES08CXXL04 series has been specifically designed to protect sensitive components which are connected to data and transmission lines f.

LES08C12L04 Features

* IEC61000-4-2 ESD 15KV Air, 8KV contact compliance
* SOIC-08 surface mount package
* Protects four I/O lines
* Peak power dissipation of 500W under 8/20μs waveform
* Working voltage: 5V, 12V, 15V and 24V
* Low leakage current
* Low capacitance and clamping voltage

📥 Download Datasheet

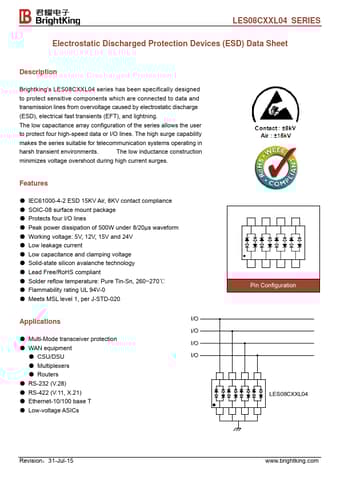

LES08C12L04 Datasheet Preview — This datasheet PDF includes multiple part numbers: LES08C12L04, LES08C05L04. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: LES08C12L04, LES08C05L04
Manufacturer: Brightking
File Size: 268.38 KB
Datasheet: LES08C05L04-Brightking.pdf
Description: Electrostatic Discharged Protection Devices
Note: This datasheet PDF includes multiple part numbers: LES08C12L04, LES08C05L04.
Please refer to the document for exact specifications by model.
